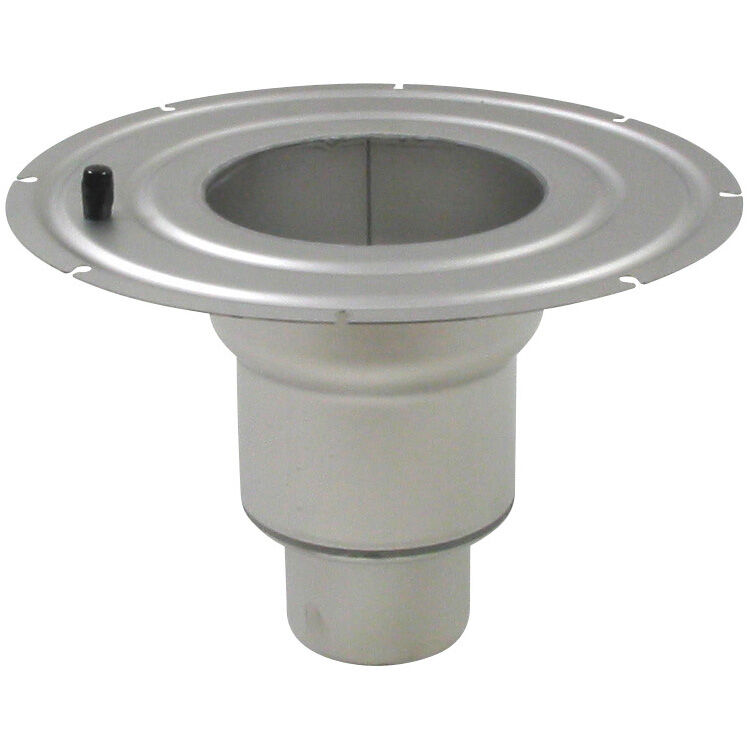

LOWER PART - (774.002.110)
×
![]()
Part Of the Series: Lower part-160
Type no.: 774.002.110
EAN no.: 5705499111927
NRF no.: 3396338
LVI no.: 3303791
LOWER PART
-Liquid membrane flange
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301

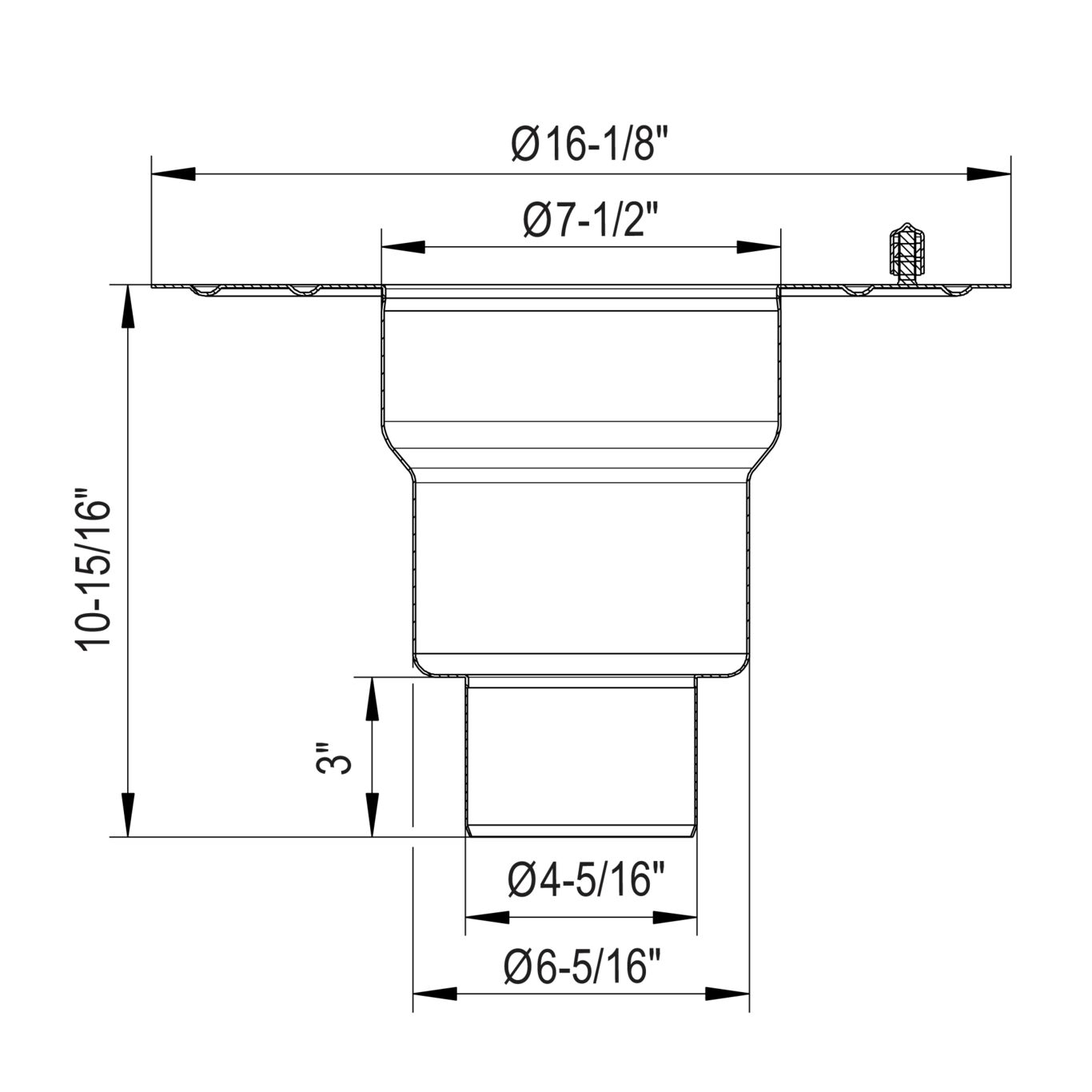

| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 278 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Weight (kg) | 2.91 |
| Weight (lbs) | 6.42 |
-
Approval Information
For approval information, please refer to the below approval certificates.
