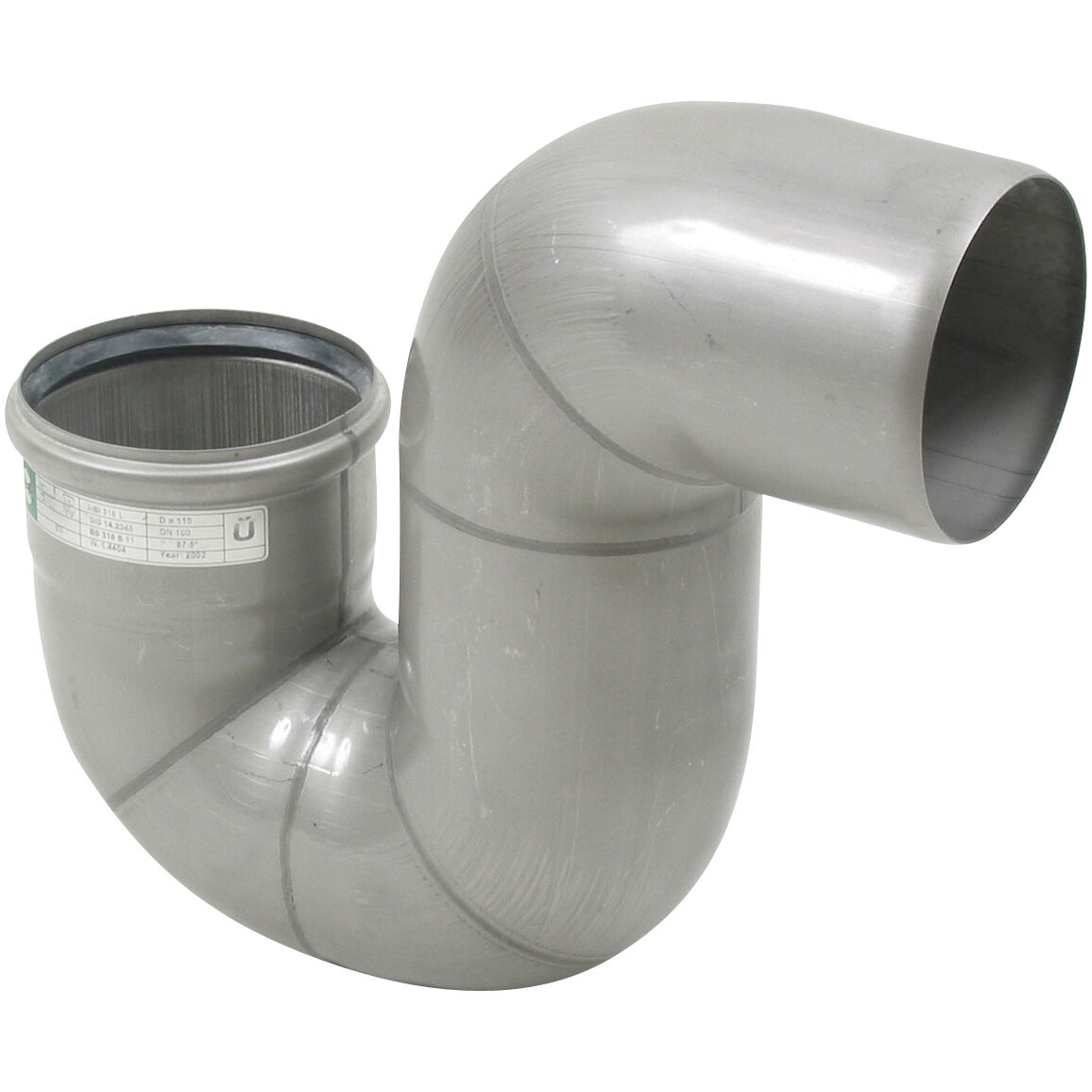

P-TRAP 87.5° - (525.090.110 S)
×
![]()
Part Of the Series: Water trap-p
Type no.: 525.090.110 S
EAN no.: 5705499101485
VVS no.: 160381410
RSK no.: 1550347
NRF no.: 3395043
LVI no.: 3304021

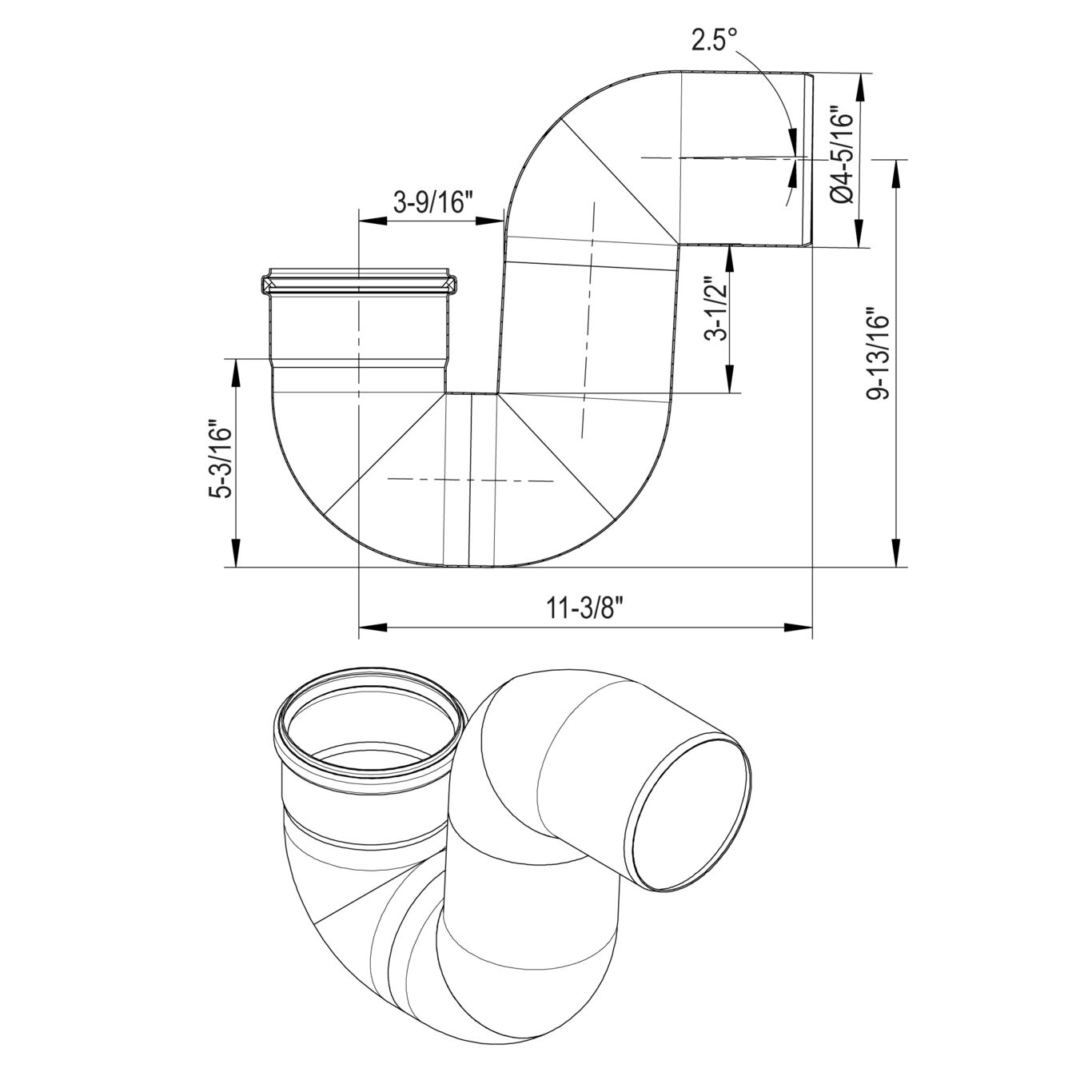

P-TRAP 87.5°
-Diameter: Ø4 inch
-Water seal height = 3-1/2 inch
-Stainless steel: AISI316L/EN1.4404
US order number: PT-4
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Field of Application | Domestic / Industrial |
| Length (mm) | 132 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 10.4 |
| Minimum Flow (l/s) | 3.4 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Water Seal Height (mm) | 89 |
| Weight (kg) | 1.49 |
| Weight (lbs) | 3.28 |
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
DE - TÜV Rheinland R 60178453 0001
NO - 0692-22 EuroPipe
DK - VA 2.41/19631-22
