UPPER PART - (710.503.000)
×
![]()
Part Of the Series: Upper part-No membrane-305
Type no.: 710.503.000
EAN no.: 5705499108347
NRF no.: 3396099
LVI no.: 3303815

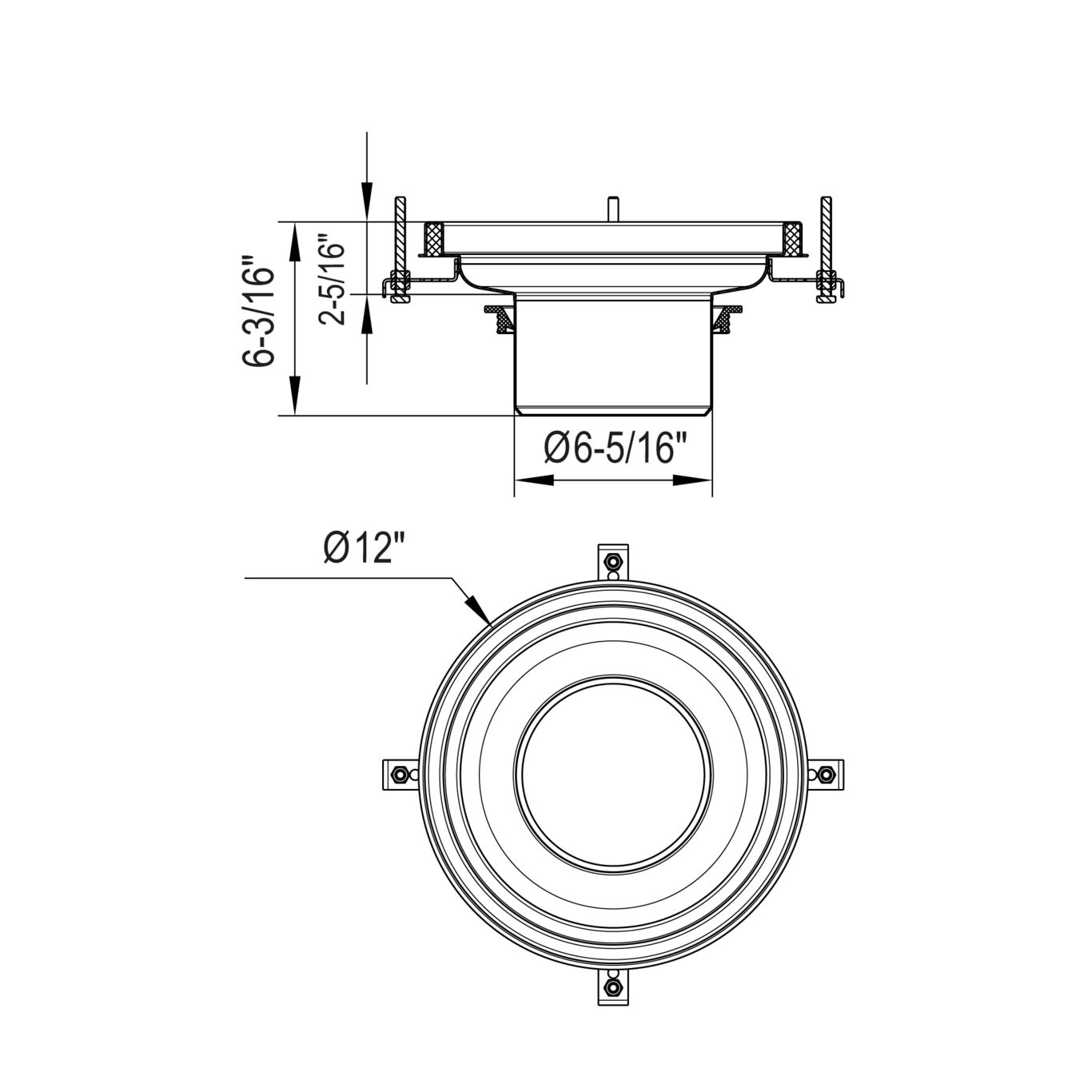

Size: Ø305
UPPER PART
-With supporting ring for water trap
-Floor: resin
-Frame: Ø12 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 157 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Shape | Round |
| Size (mm) | Ø305 |
| Size of Frame (Inch) | Ø12 |
| Weight (kg) | 3.48 |
| Weight (lbs) | 7.67 |
-
Approval Information
For approval information, please refer to the below approval certificates.
