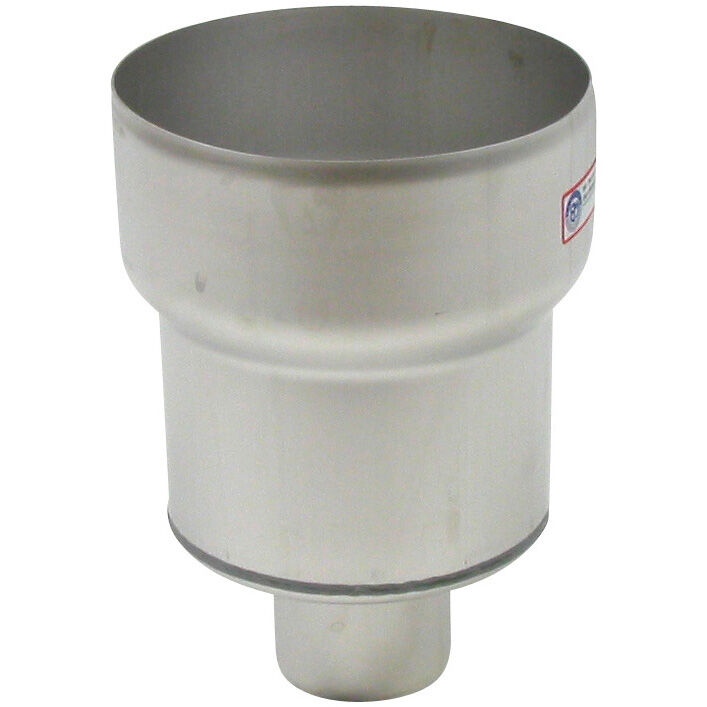

LOWER PART - (760.002.075)
×
![]()
Part Of the Series: Lower part-160
Type no.: 760.002.075
EAN no.: 5705499109269
NRF no.: 3396324
LVI no.: 3303757
LOWER PART
-No membrane flange
-Outlet: Ø3 inch, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-213, BFD-213-R, BFD-213-VP
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 267 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Weight (kg) | 1.16 |
| Weight (lbs) | 2.56 |
-
Approval Information
For approval information, please refer to the below approval certificates.
