S-TRAP 180° - (525.180.075 S)
×
![]()
Part Of the Series: Water trap-S
Type no.: 525.180.075 S
EAN no.: 5705499114102
NRF no.: 3395048

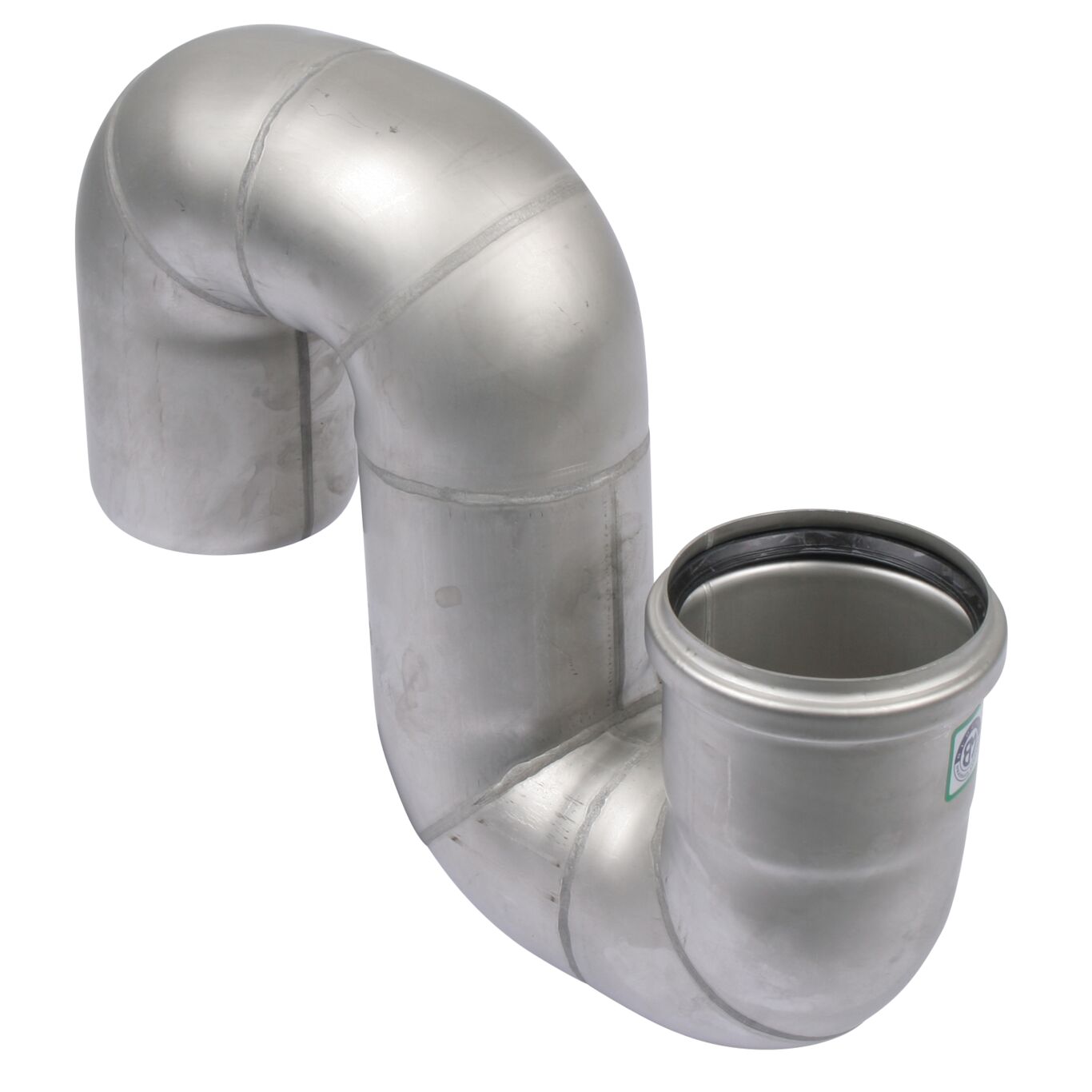

S-TRAP 180°
-Diameter: Ø3 inch
-Water seal height = 3-1/4 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 180 |
| Field of Application | Domestic / Industrial |
| Length (mm) | 93 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Water Seal Height (mm) | 81 |
| Weight (kg) | 1 |
| Weight (lbs) | 2.2 |
-
Approval Information
For approval information, please refer to the below approval certificates.
