LOWER PART - (771.002.075)
×
![]()
Part Of the Series: Lower part-160
Type no.: 771.002.075
EAN no.: 5705499111224
LVI no.: 3303781

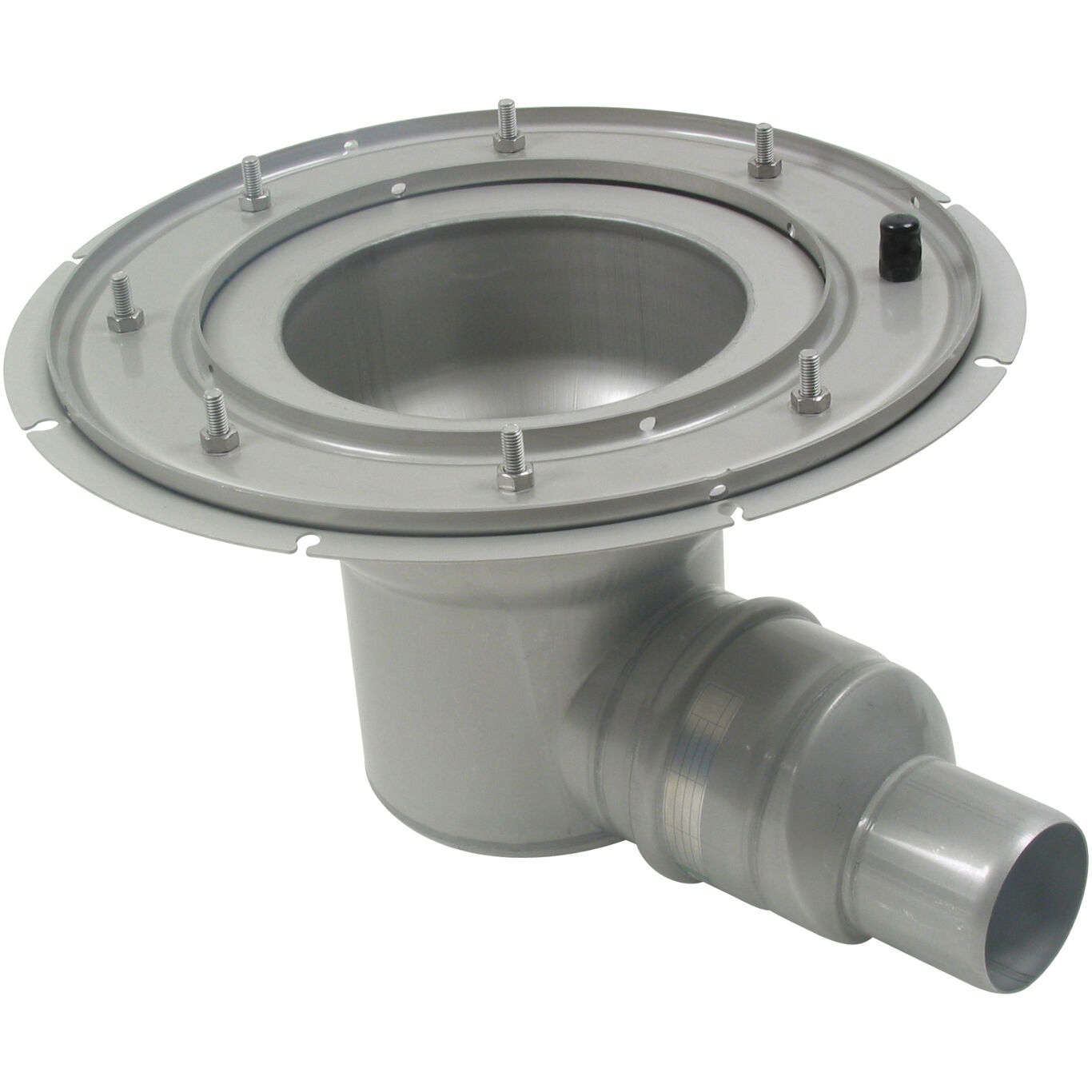

LOWER PART
-Sheet membrane flange
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-113-R-SO, BFD-113-SO
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Sheet Membrane |
| Minimum Height (mm) | 218 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Horizontal |
| Weight (kg) | 5.43 |
| Weight (lbs) | 11.97 |
-
Approval Information
For approval information, please refer to the below approval certificates.
