LOWER PART - (771.003.160)
×
![]()
Part Of the Series: Lower part-250
Type no.: 771.003.160
EAN no.: 5705499111286
LVI no.: 3303787

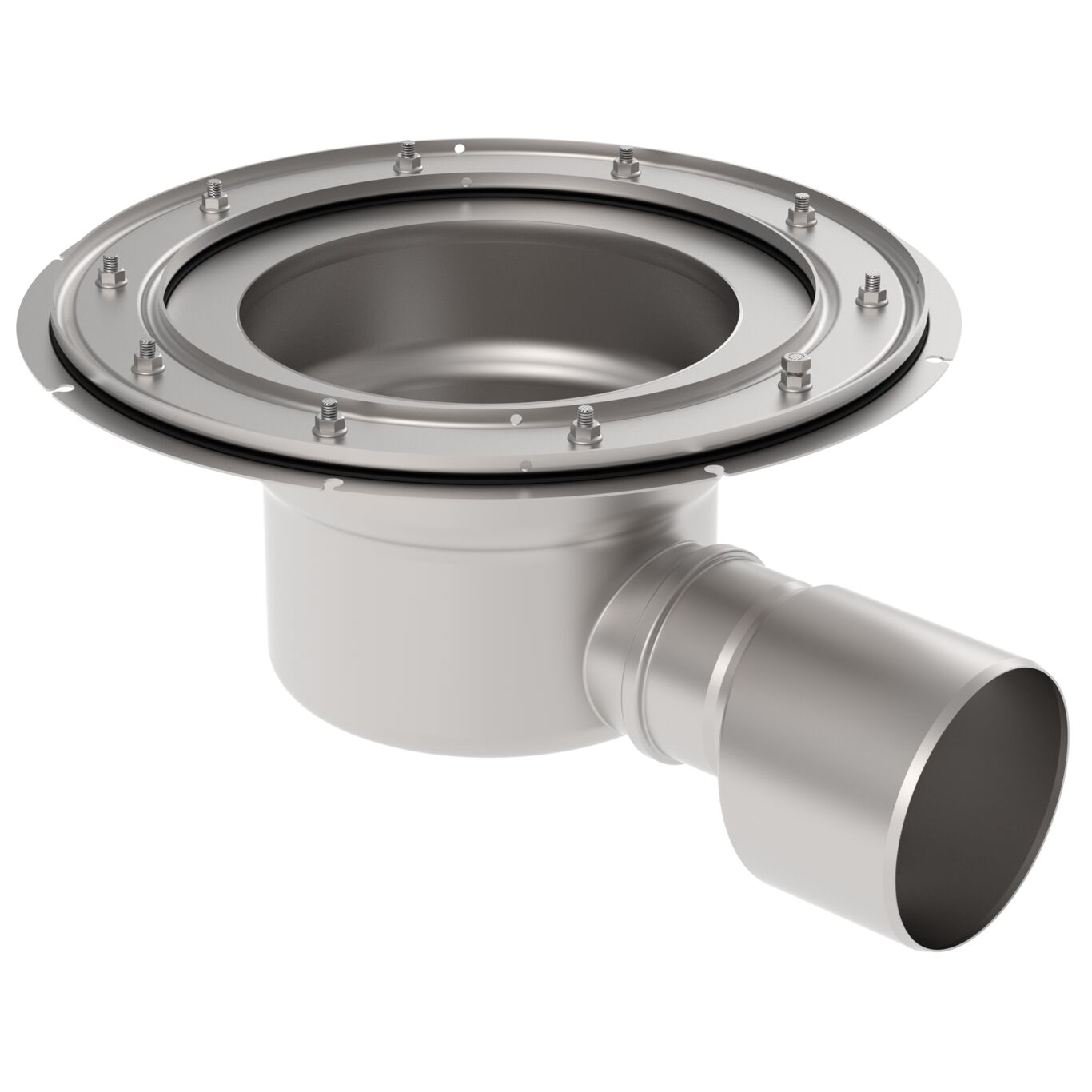

LOWER PART
-Sheet membrane flange
-Outlet: Ø160mm, horizontal
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-136-R-SO, BFD-136-SO
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Sheet Membrane |

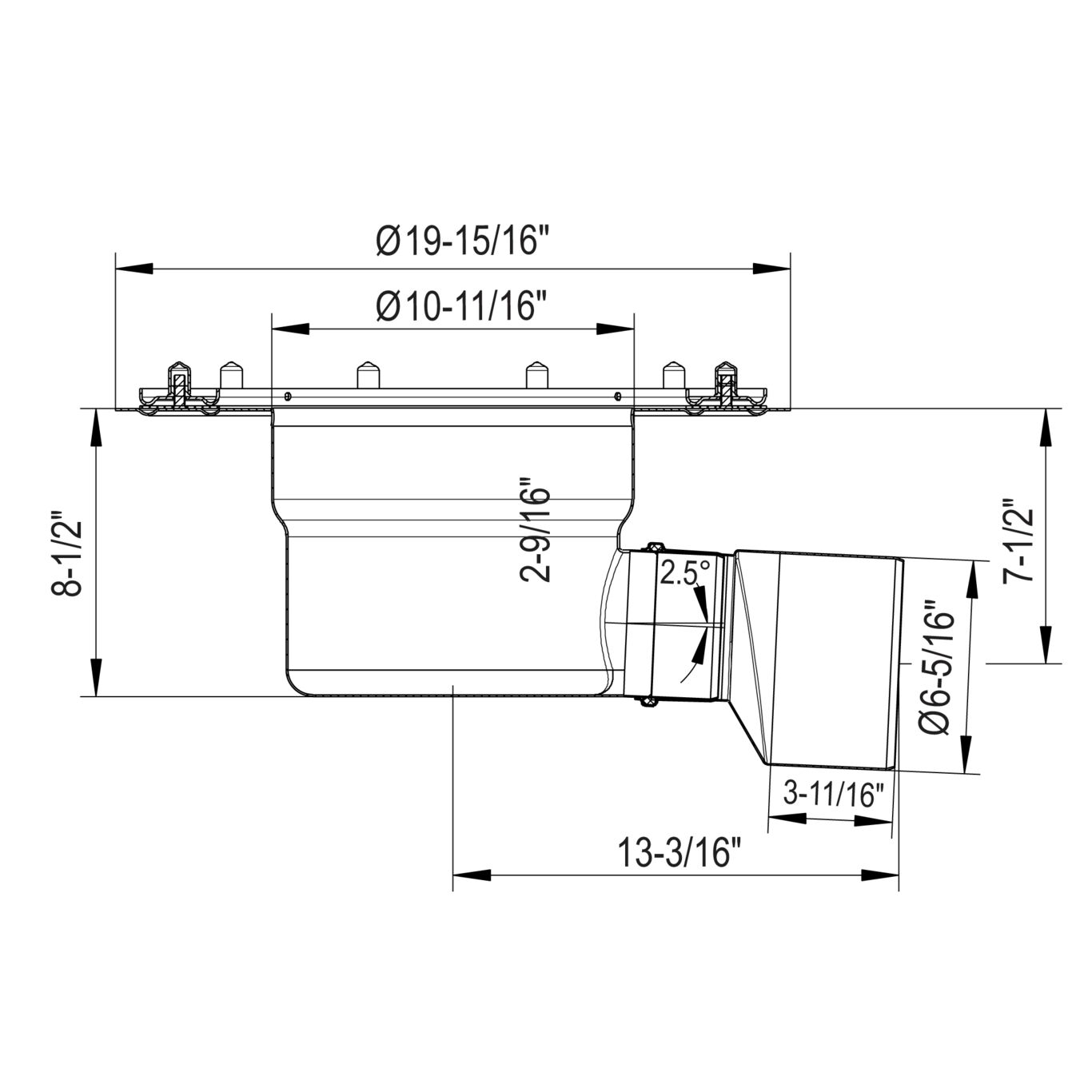

| Minimum Height (mm) | 216 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Horizontal |
| Weight (kg) | 9.42 |
| Weight (lbs) | 20.77 |
-
Approval Information
For approval information, please refer to the below approval certificates.
