UPPER PART - (774.603.000)
×
![]()
Part Of the Series: Upper part-Vinyl-332
Type no.: 774.603.000
EAN no.: 5705499112511
LVI no.: 3303848
Size: Ø332

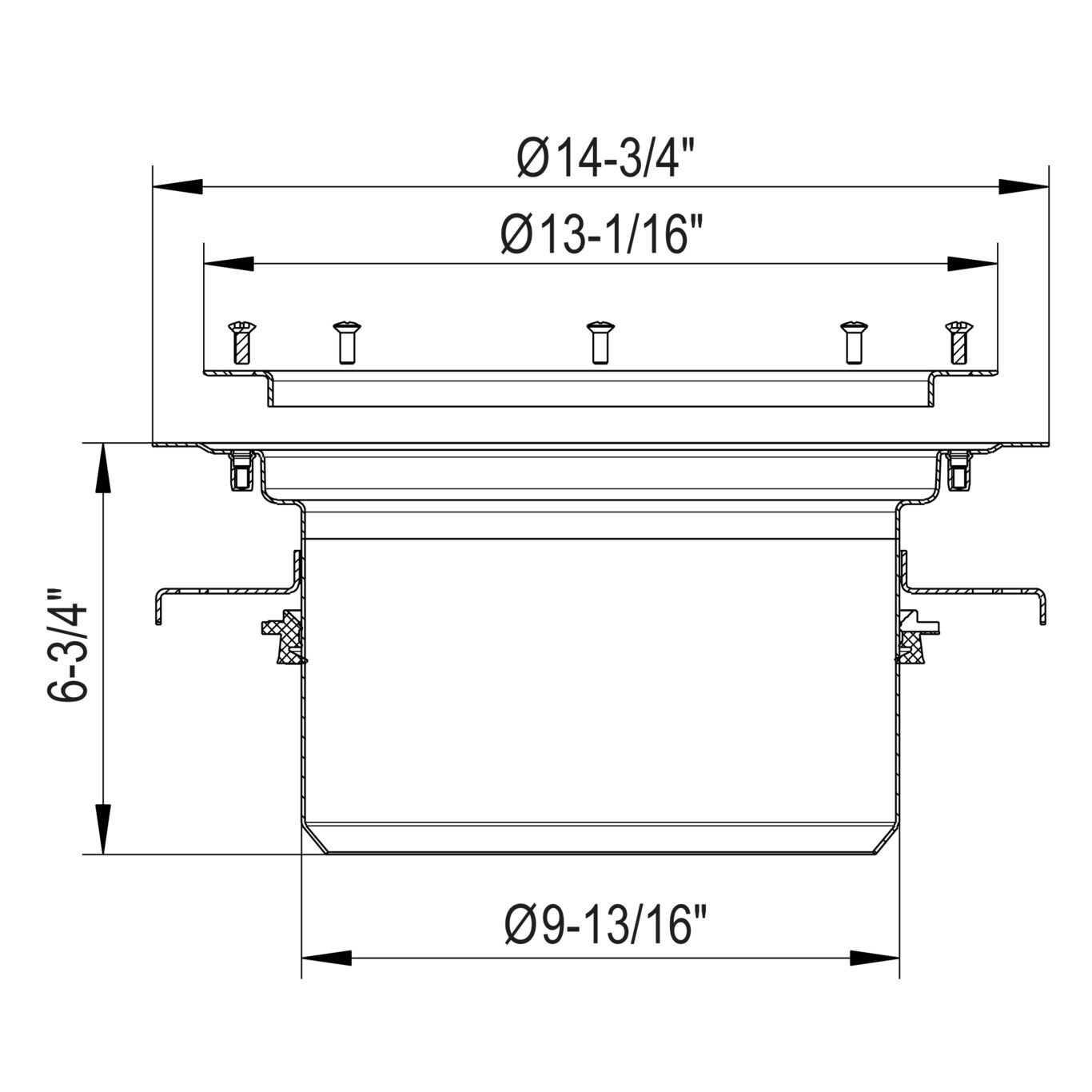

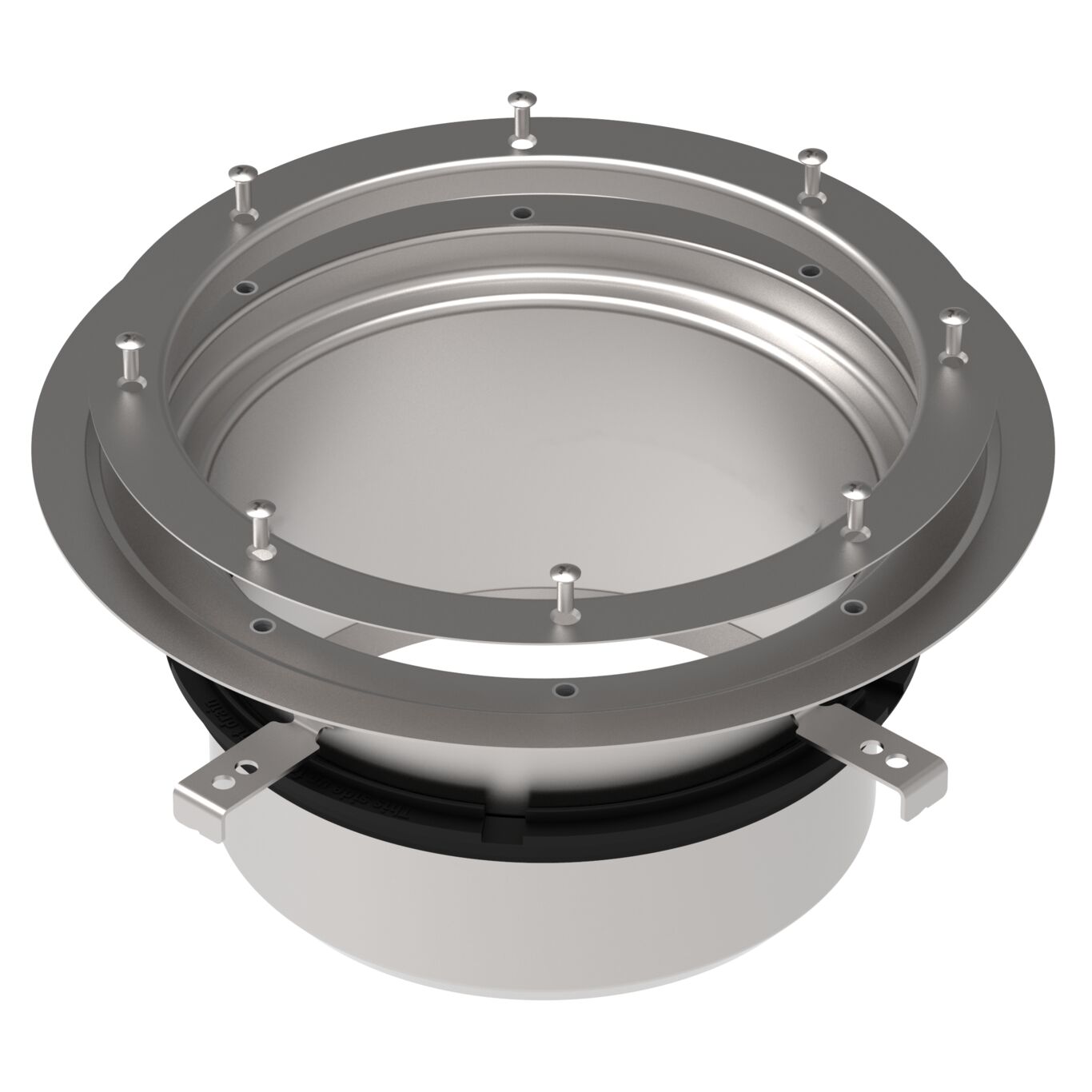

UPPER PART
-Floor: vinyl
-Frame: Ø332mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 172 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 250 |
| Outlet Diameter (Inch) | 10 |
| Shape | Round |
| Size (mm) | Ø332 |
| Size of Frame (Inch) | Ø13-1/8 |
| Weight (kg) | 3.67 |
| Weight (lbs) | 8.09 |
-
Approval Information
For approval information, please refer to the below approval certificates.
