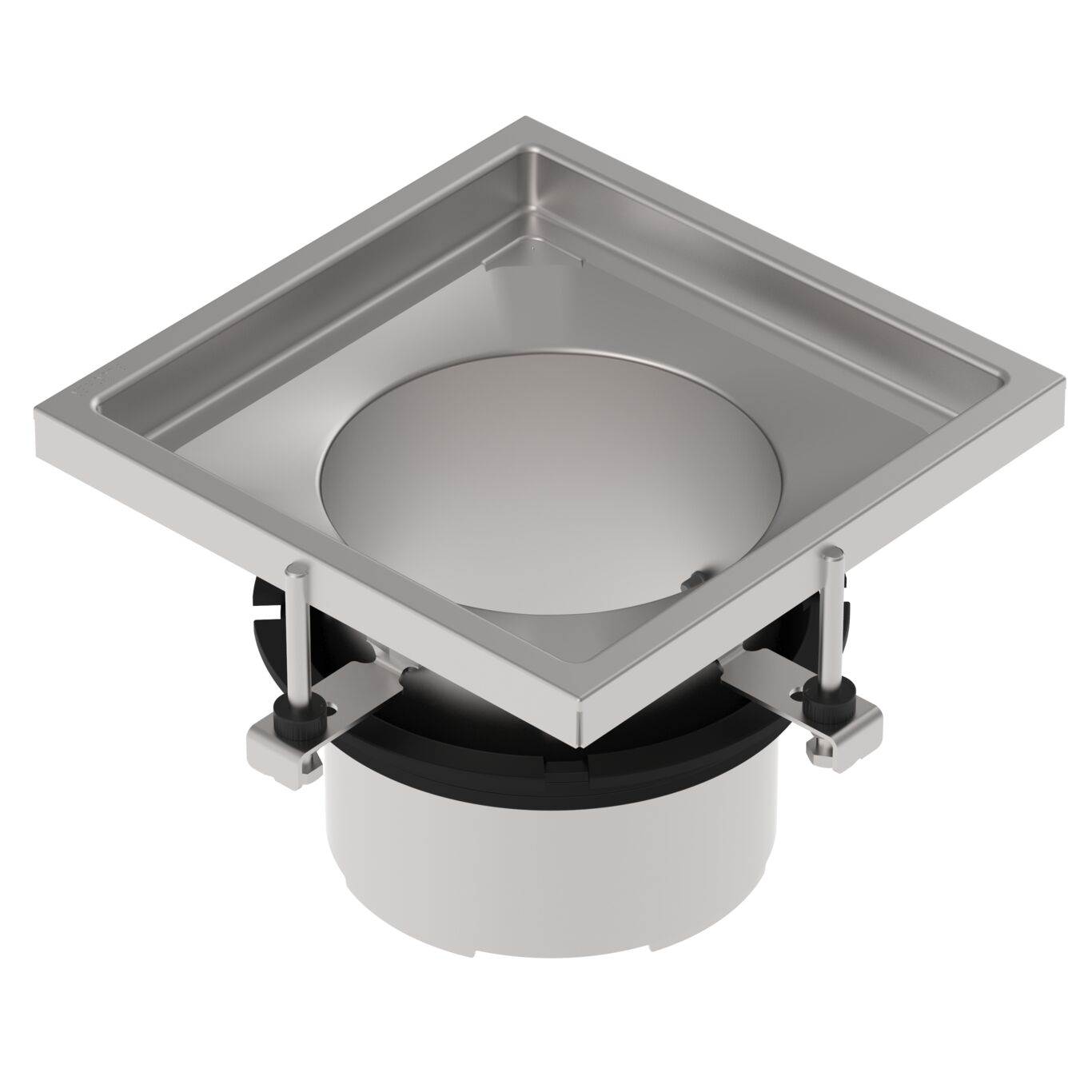

UPPER PART - (774.401.000 S)
×
![]()
Part Of the Series: Upper part-No membrane-250
Type no.: 774.401.000 S
EAN no.: 5705499128819
Size: 250x250
UPPER PART
-Floor: concrete and tiled
-Frame: 250x250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Shape | Square |
| Size (mm) | 250x250 |
| Size of Frame (Inch) | 9-7/8 x 9-7/8 |
| Weight (kg) | 2.54 |
| Weight (lbs) | 5.6 |
-
Approval Information
For approval information, please refer to the below approval certificates.
