3MM GRATING SQUARE - (790.218.000.03)
×
![]()
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.03
EAN no.: 5705499128697
Size: 250x250

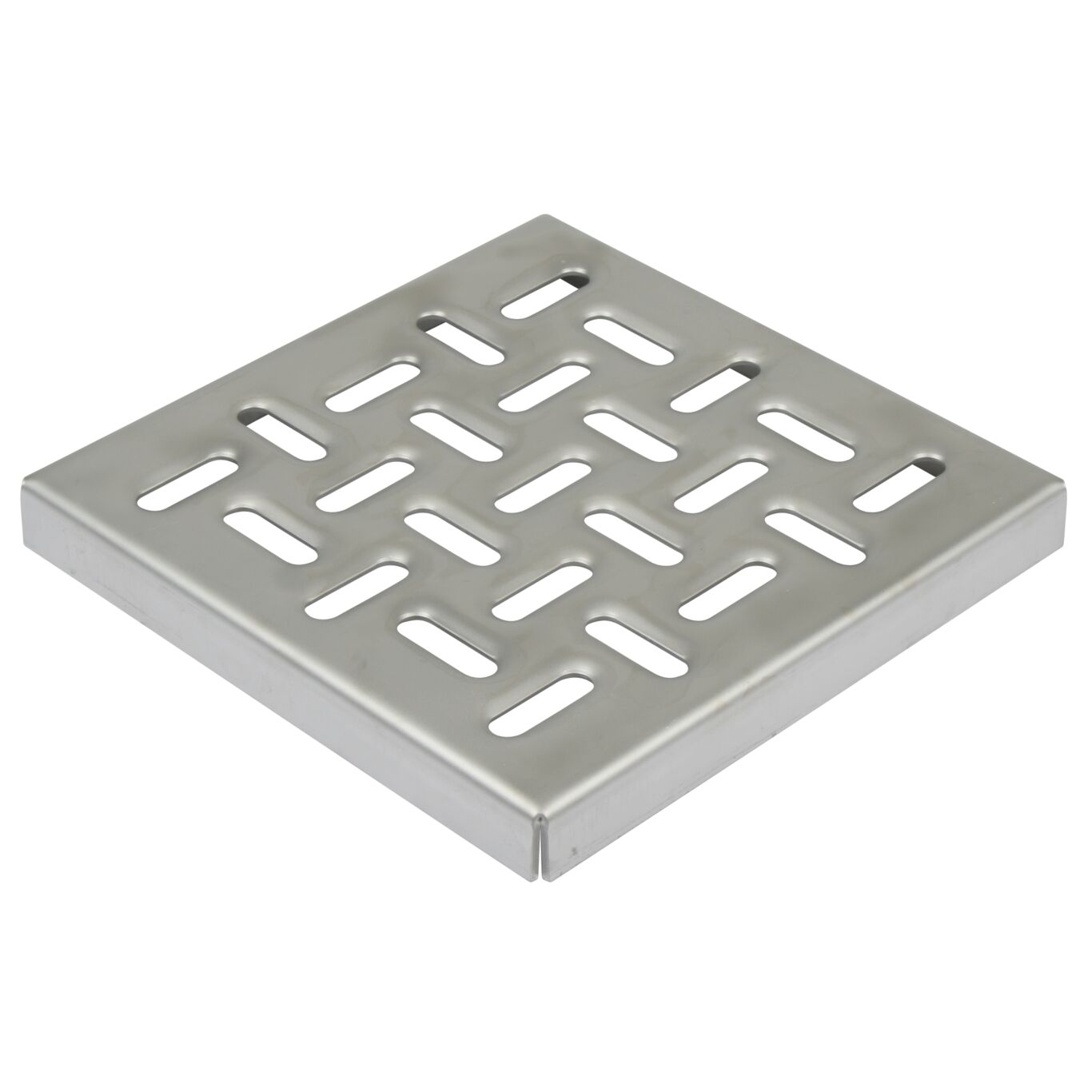

3MM GRATING SQUARE

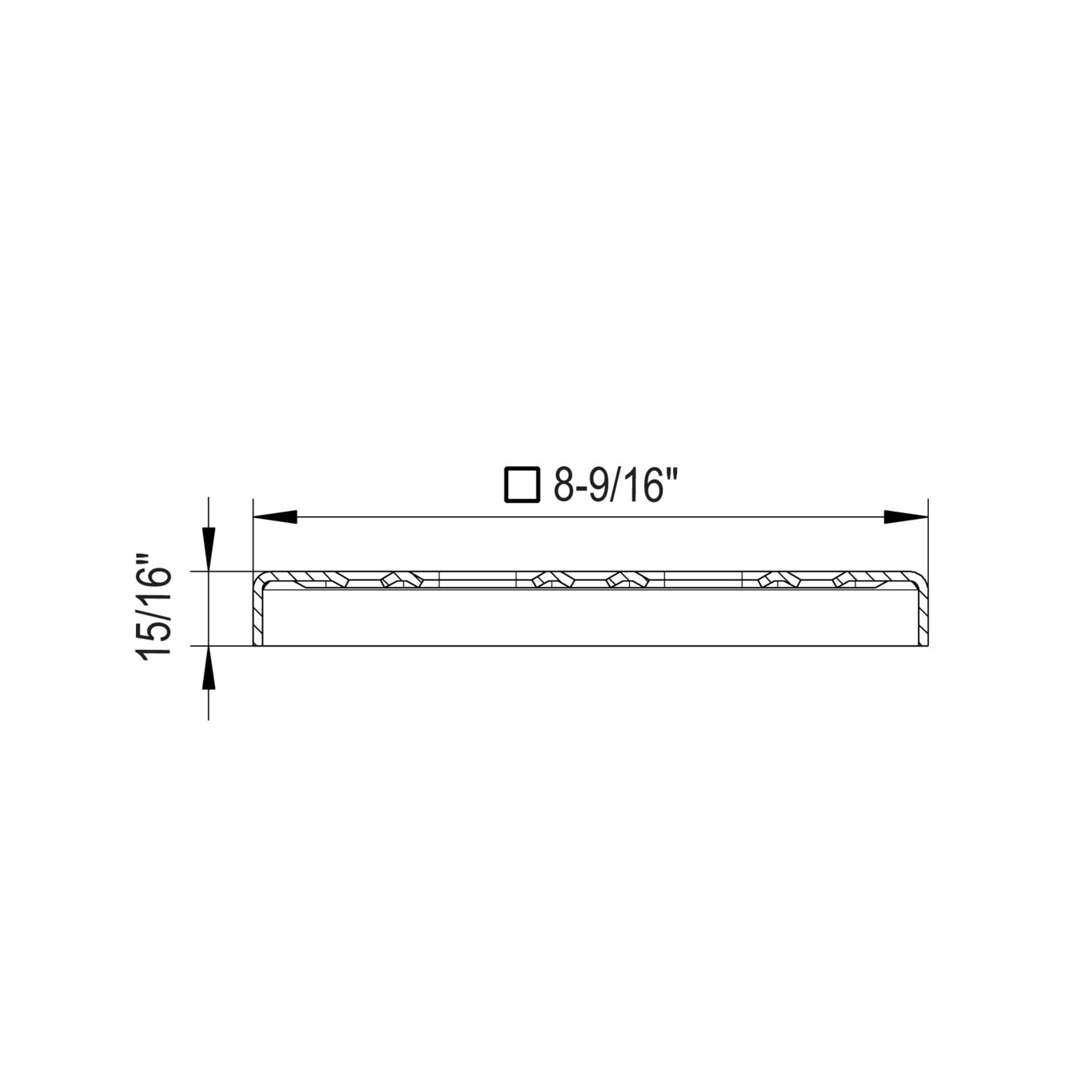

-Grating: 218x218mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1433 | A15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 24 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 250x250 |
| Size of Frame (Inch) | 9-7/8 x 9-7/8 |
| Weight (kg) | 1.31 |
| Weight (lbs) | 2.89 |
-
Approval Information
For approval information, please refer to the below approval certificates.
