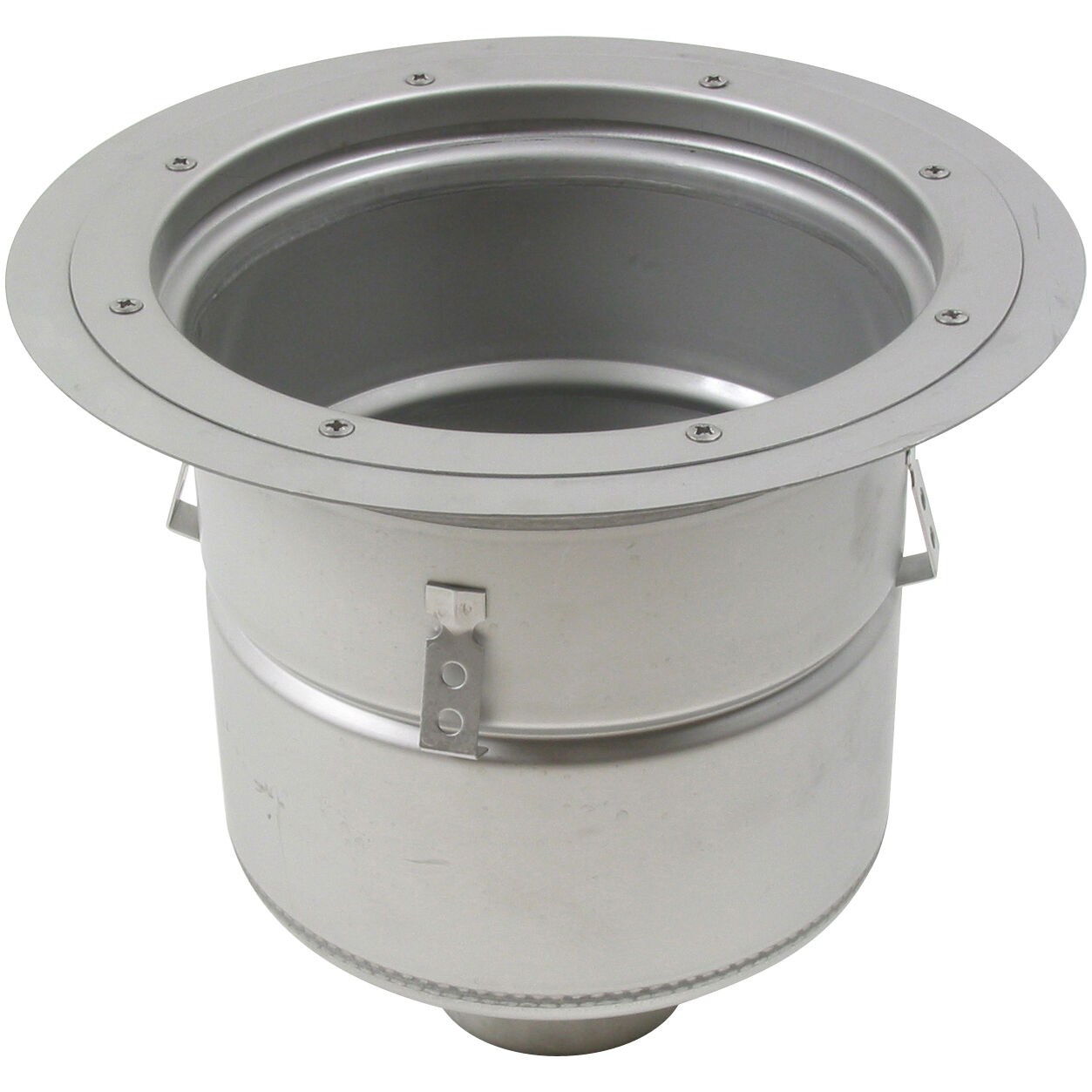

INDUSTRIAL DRAIN - (760.603.110)
×
![]()
Part Of the Series: Drain-Vinyl-332
Type no.: 760.603.110
EAN no.: 5705499109627
VVS no.: 153050403
RSK no.: 7121836
NRF no.: 3396089
LVI no.: 3303536
Size: Ø332
INDUSTRIAL DRAIN
-Floor: vinyl
-Frame: Ø332mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-534

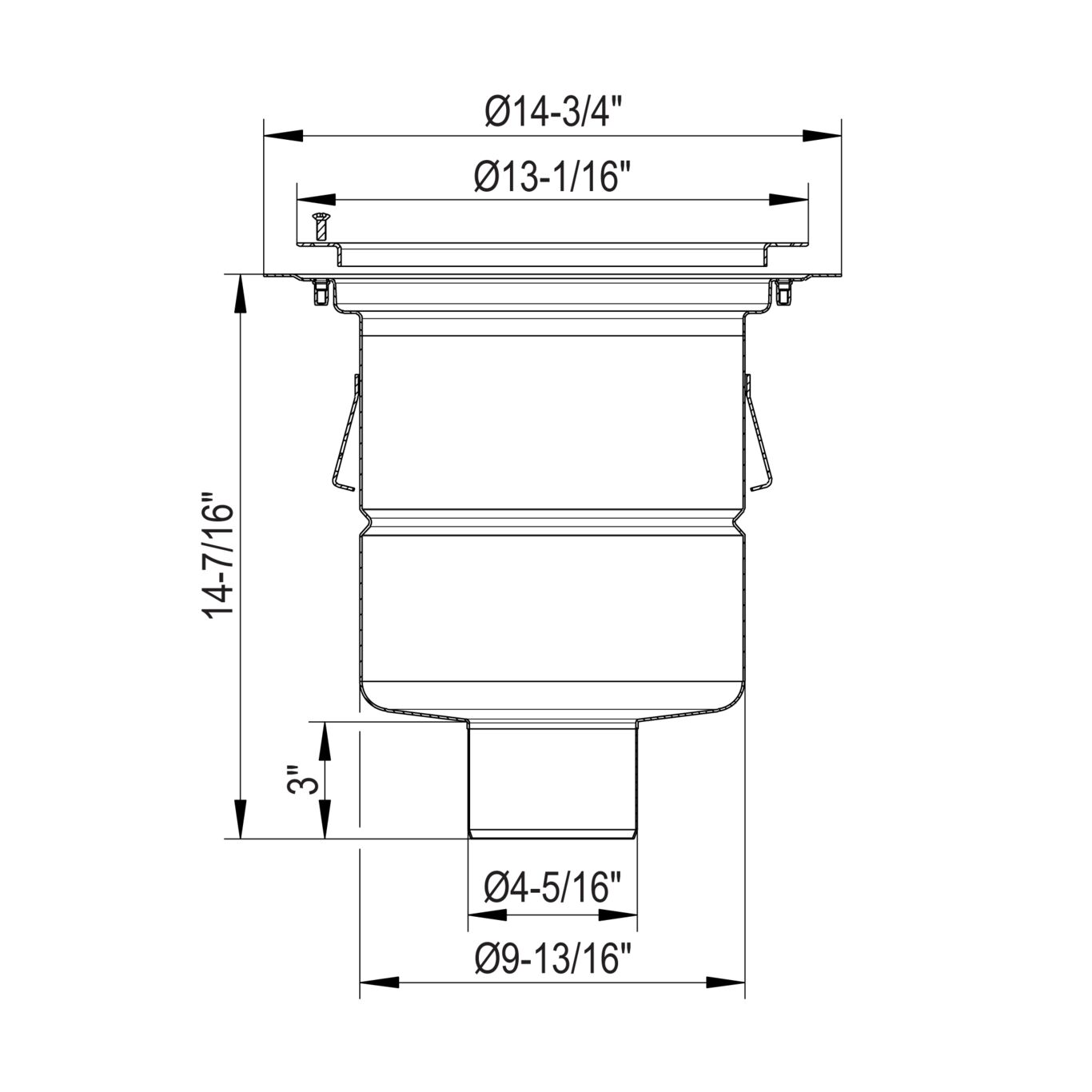

| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 366 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø332 |
| Size of Frame (Inch) | Ø13-1/8 |
| Weight (kg) | 5.32 |
| Weight (lbs) | 11.73 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.42/19497-21
US - NSF
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 c
