LOWER PART FOR ROOF DRAIN - (402.004.050)
×
![]()
Part Of the Series: Lower part-single ply membrane
Type no.: 402.004.050
EAN no.: 5705499132960
VVS no.: 164121050
NRF no.: 3395011
LVI no.: 3384525

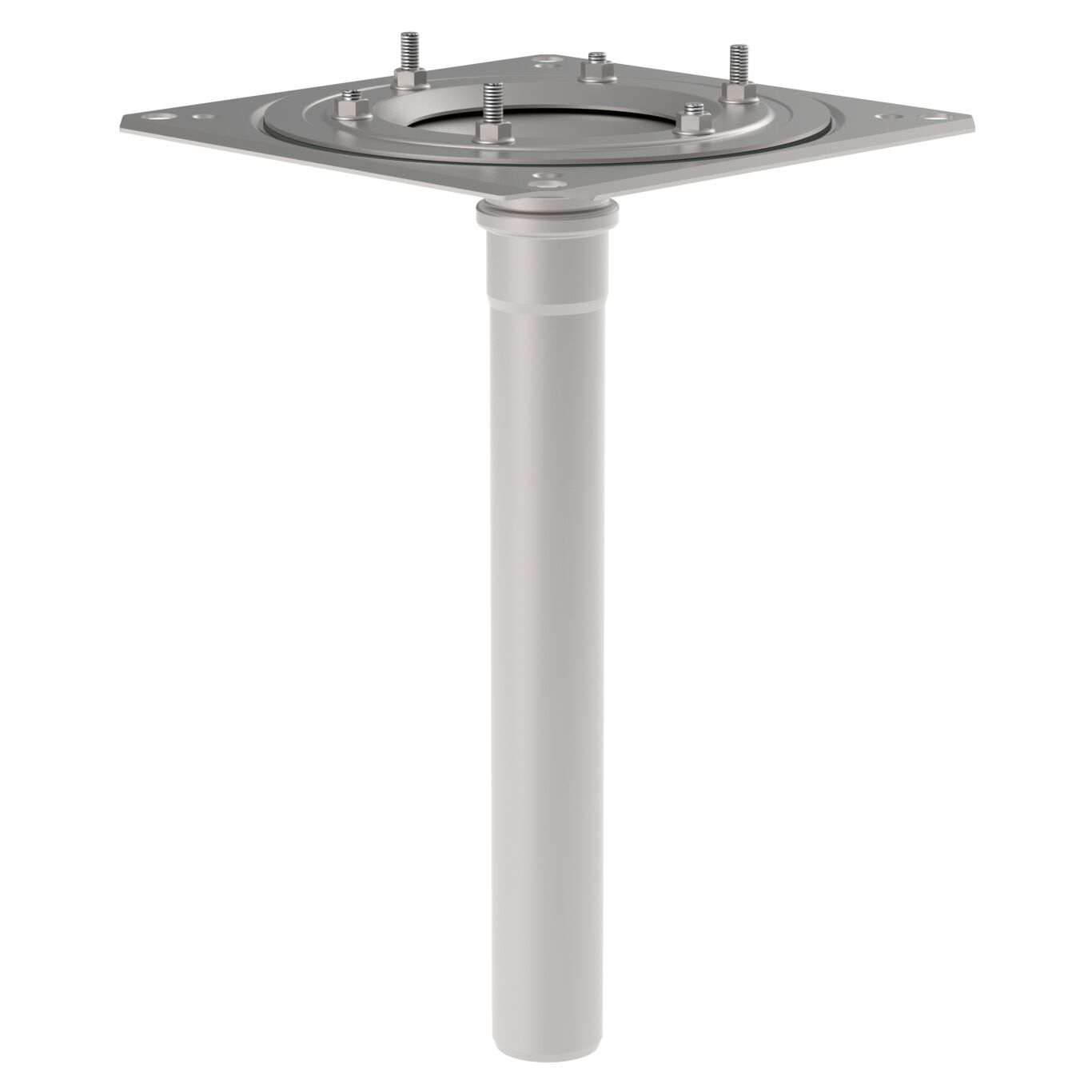

LOWER PART FOR ROOF DRAIN
-Roof: single ply membrane

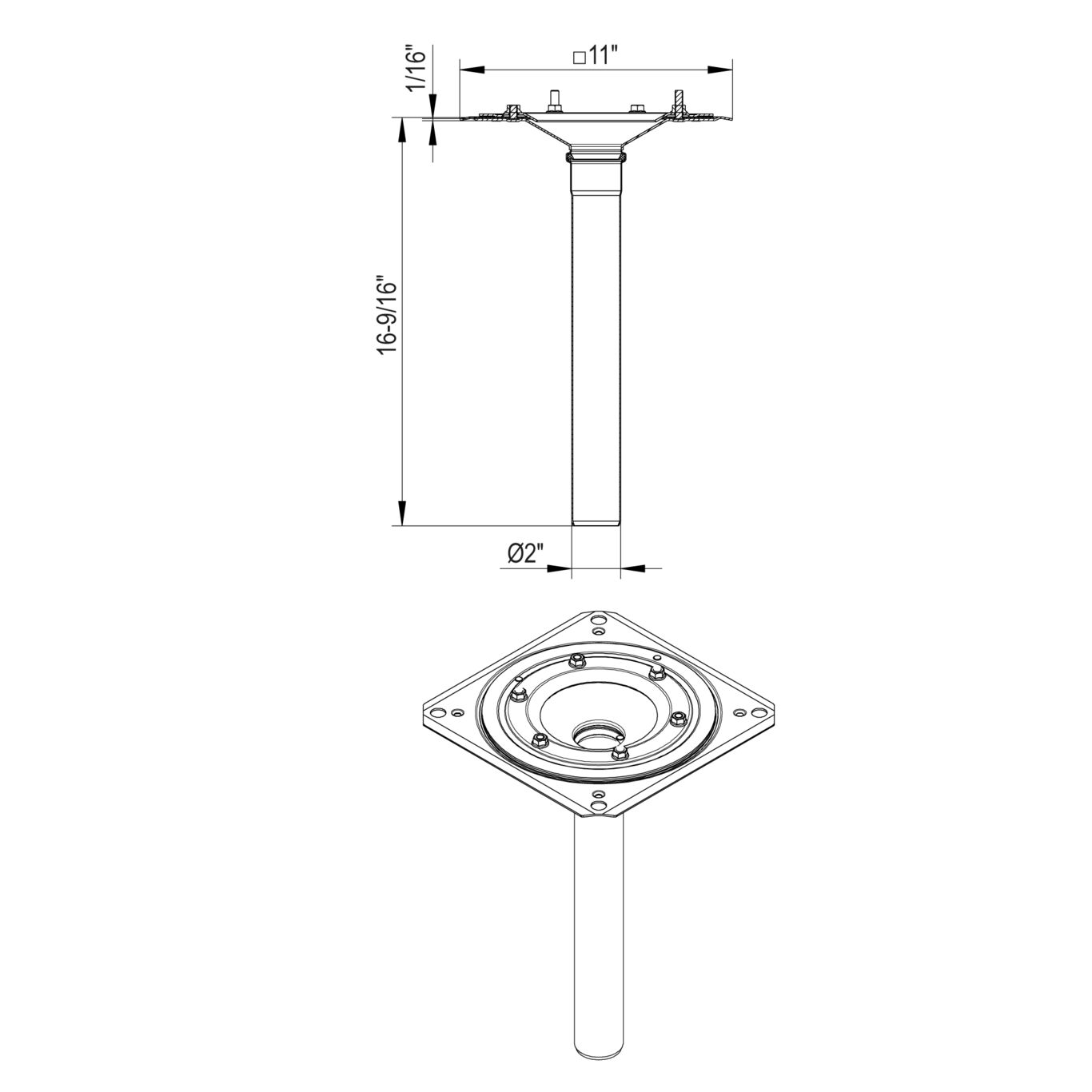

-Flange: 11 x 11 inch
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 420 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Roof | Single ply membrane |
| Weight (kg) | 2.42 |
| Weight (lbs) | 5.34 |
-
Approval Information
For approval information, please refer to the below approval certificates.
