LOWER PART - (110.000.110)
×
![]()
Part Of the Series: Lower part-110
Type no.: 110.000.110
EAN no.: 5705499129403

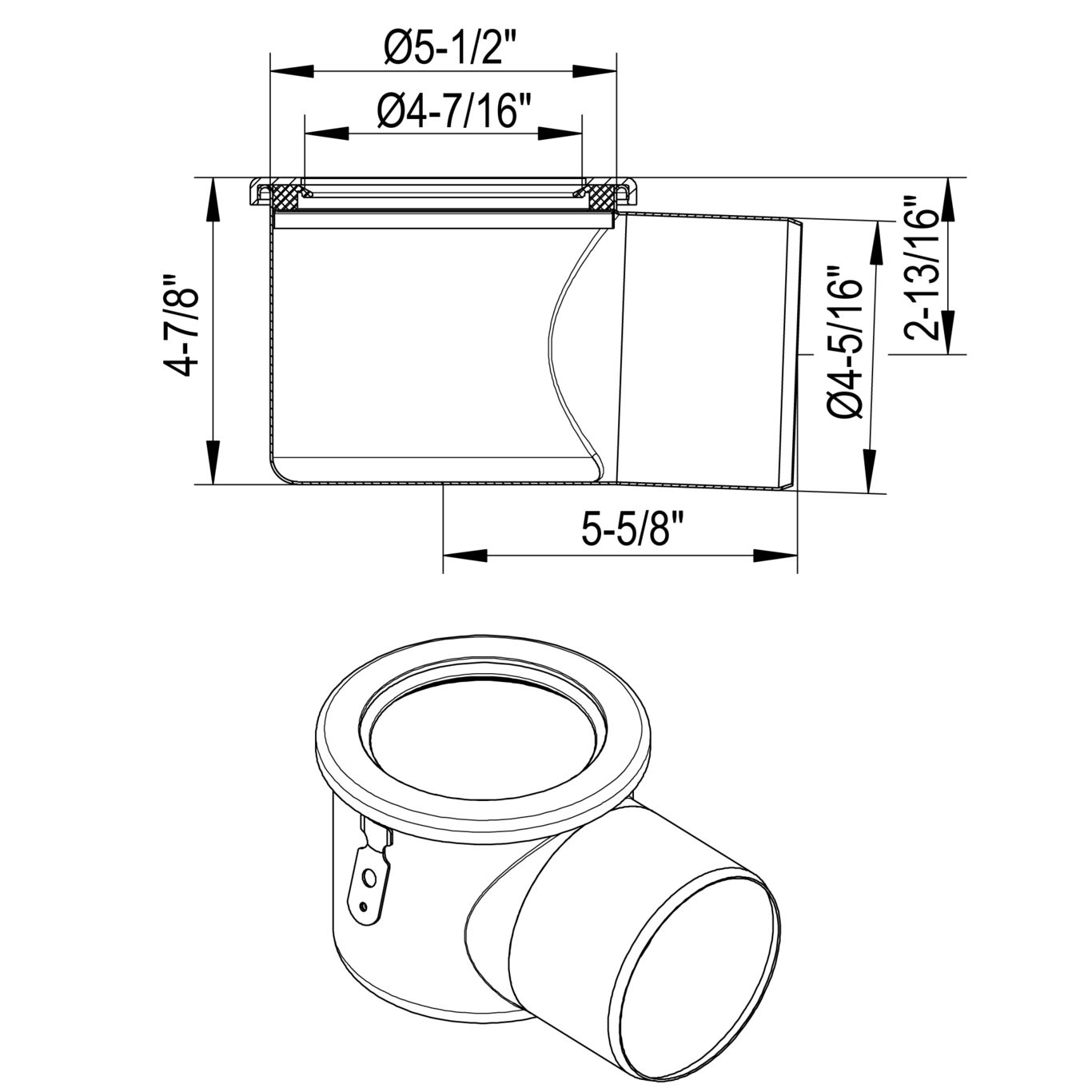

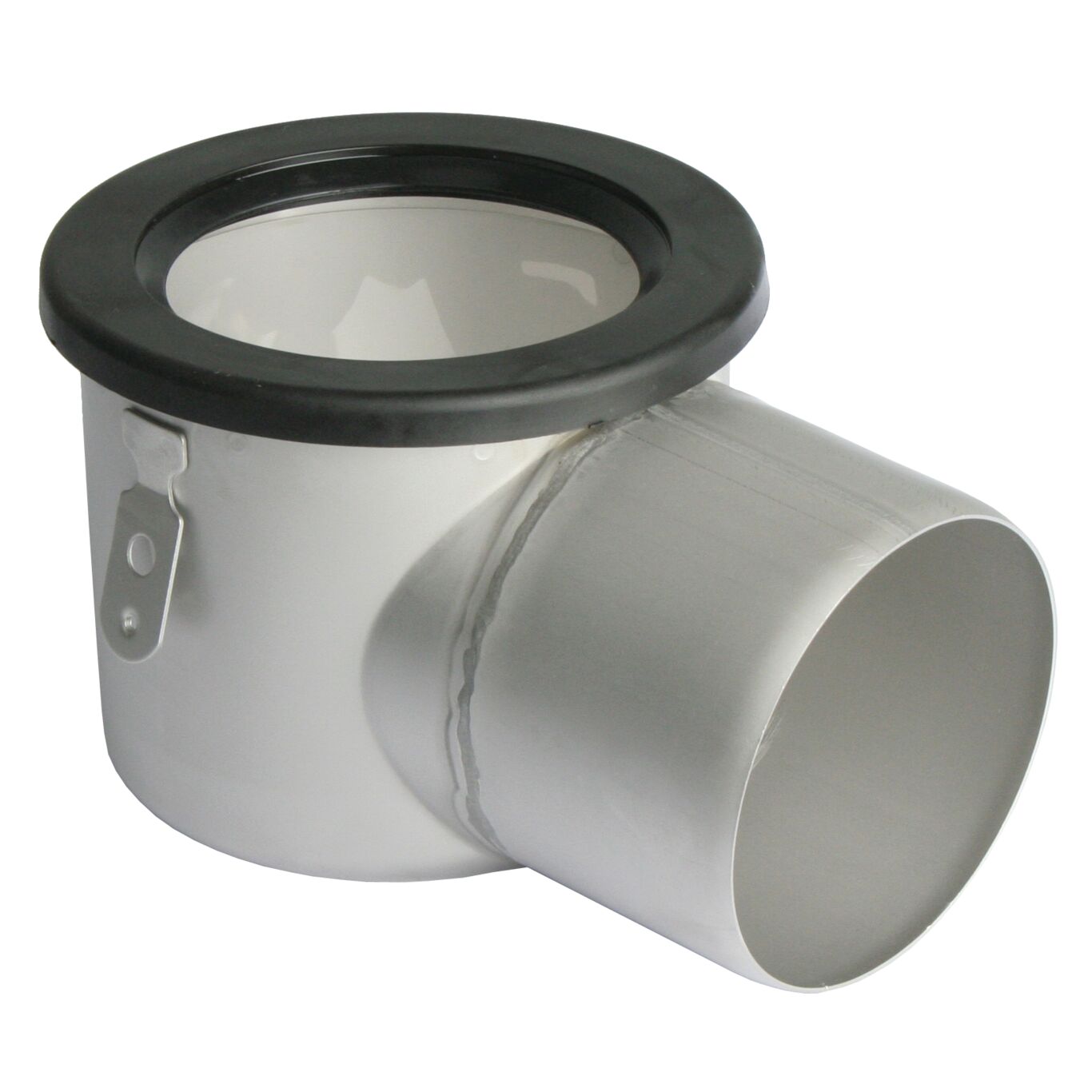

LOWER PART
-No membrane flange
-Outlet: Ø4 inch, horizontal
-Stainless steel: AISI304/EN1.4301
Part of US Order Number(s) BFD-###
| Product Specification | |
|---|---|
| Field of Application | Domestic / Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 124 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Horizontal |
| Weight (kg) | 0.85 |
| Weight (lbs) | 1.87 |
-
Approval Information
For approval information, please refer to the below approval certificates.
