BLANK PLATE SQUARE - (790.168.001.00)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.001.00
EAN no.: 5705499121193
Size: 200x200

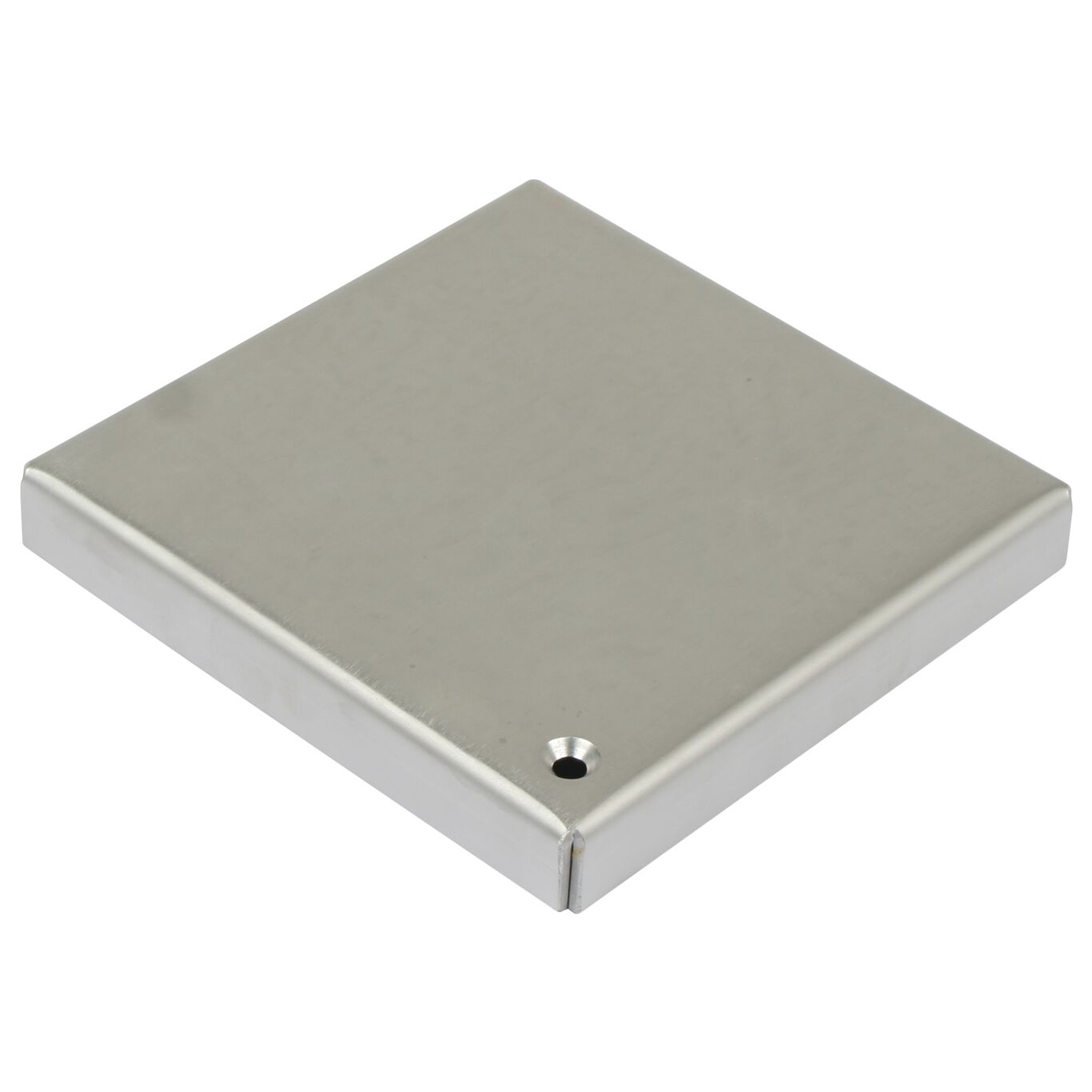

BLANK PLATE SQUARE
-With screw lock
-Grating: 168x168mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 24 |
| Number of Screws | 1 |
| Shape | Square |
| Size (mm) | 200x200 |
| Size of Frame (Inch) | 7-7/8 x 7-7/8 |
| Weight (kg) | 0.97 |
| Weight (lbs) | 2.14 |
-
Approval Information
For approval information, please refer to the below approval certificates.
