INDUSTRIAL DRAIN, LOW - (766.403.160)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 766.403.160
EAN no.: 5705499110401
VVS no.: 153041318
LVI no.: 3303571
Size: 300x300

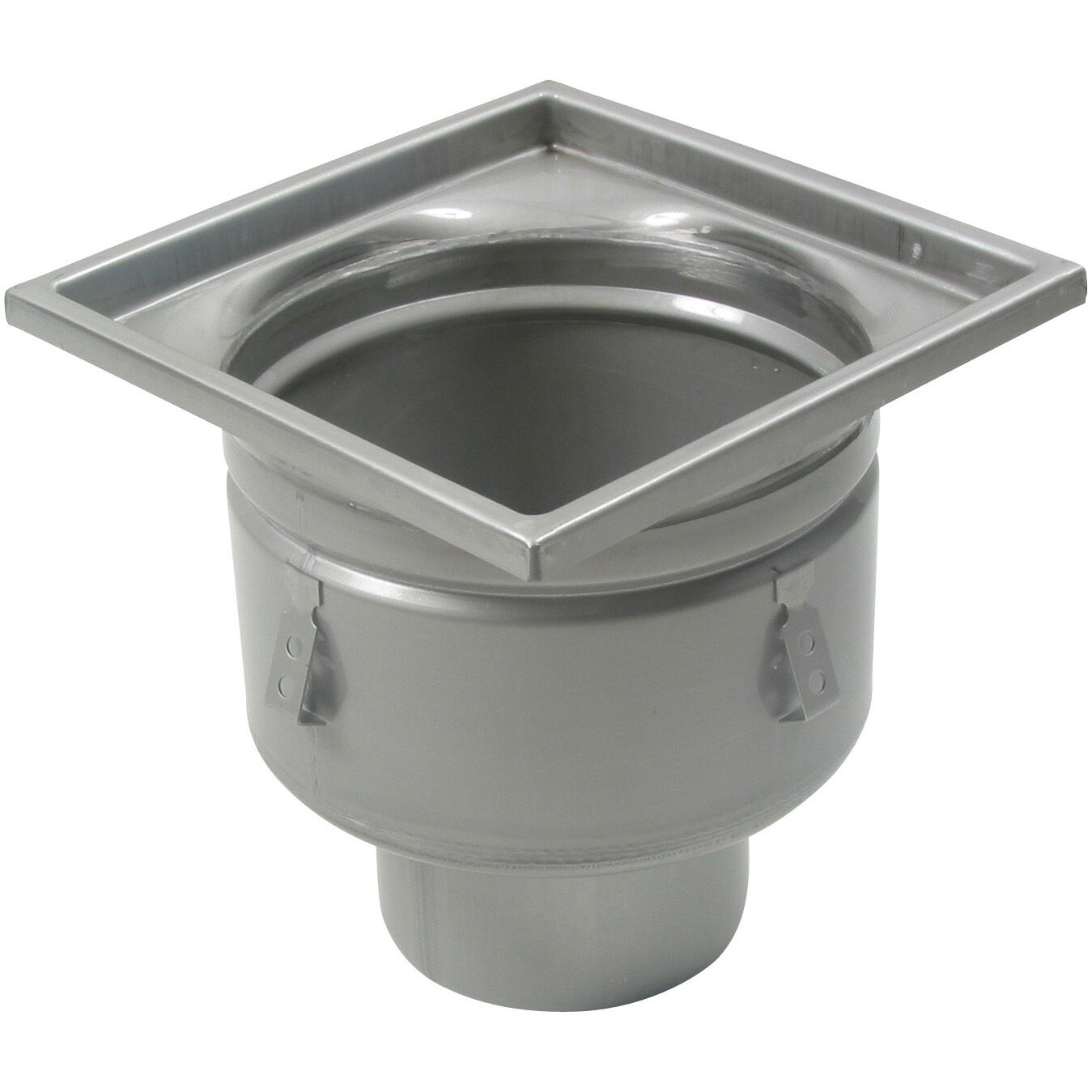

INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-No membrane, frame: 300x300mm
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-346
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 300x300 |
| Size of Frame (Inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 4.86 |
| Weight (lbs) | 10.71 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
